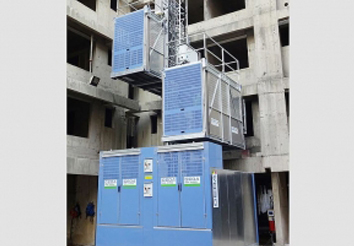

Construction hoists or Builders Hoists are one of the safest and most cost effective ways of
transporting materials and personnel between floors on a construction site. Construction hoists can be installed against the façade, tying into scaffolding or internally within a lift shaft. The transport platform travels up along a mast system to allow materials and men get to the floor they need to in the most efficient way.
Casey group has been one of Irelands leading suppliers in construction/builders hoists for over a decade. We work with some of the top hoist manufacturers in Europe such as GEDA, Electroelsa, Alba, Scanclimber and Jaso. With a diverse fleet of both material only and material/personnel hoists, with load capacities from 300kg right up to 3000kg, we are sure to have a hoist to suit your onsite requirements. We have a team of skilled technicians that travel nationwide to provide onsite consultation to help you make the right decision for your project. Contact us now to set up a consultation or receive a quote.

Material Only Hoist

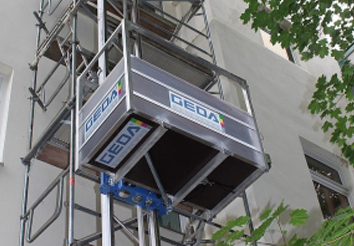

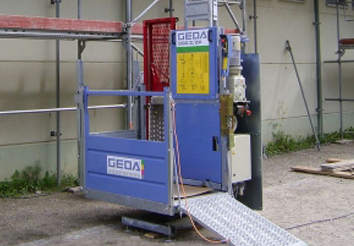

The GEDA 300 Z with its lightweight 2 metre aluminium mast segments has been used on building sites for various kinds of transport for many years. Its spacious load platform with a maximum capacity of 300kg up to a height of 50 metres makes it the ideal rental unit for permanent use on building sites.

GEDA 300 Z
Cargo	Material Only
Load Capacity	200KG
Lifting Height	35m
Lifting Speed	25 m/min
Power Supply	1.7 kW / 230 V / 50 Hz / 16 A
Platform Dimension	0.8 m x 1.4 m x 1.1 m

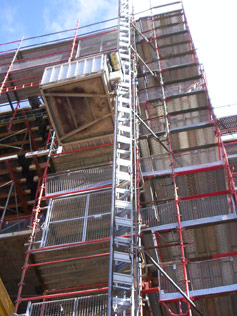

ALIMAK HEK GL 500S
Cargo	Material Only
Load Capacity	500KG
Lifting Height	80m
Lifting Speed	24 m/min
Power Supply	4.8 kW / 400 V / 50 Hz / 16 A
Platform Dimension	1.30m x 1.50m

GEDA 2000Z
Cargo	Material Only
Load Capacity	2000KG
Lifting Height	100m
Lifting Speed	24 m/min
Power Supply	415V/3 Phase/ 16amp
Platform Dimension	1.5m x 4.3m

Material & Passenger Hoist

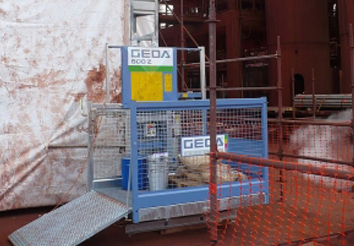

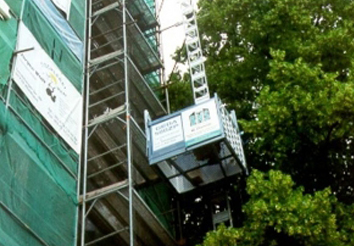

The transport platform GEDA 500 Z/ZP offers a simple transport system for materials and people with a spacious open top transport platform. Two operating options offer material only hoist with a load bearing capacity up to 850kg or a transport platform for a maximum of 5 people and loads up to 500kg.

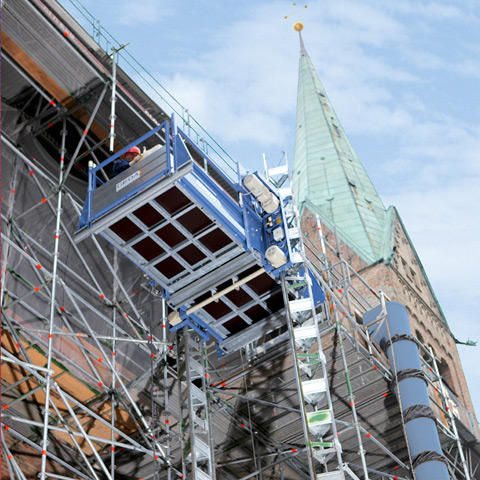

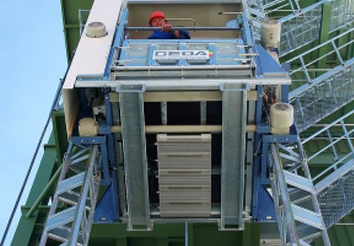

The transport platform GEDA 1500 Z/ZP unites two different machines in one, hoist for materials with a load bearing capacity of 2000kg and a transport platform for material and persons. The GEDA 1500 Z/ZP may transport 7 people in addition to 800kg of goods as soon as it has been switched to the operating mode “transport platform“. The load platforms provide enough space for bulky and heavy building materials.

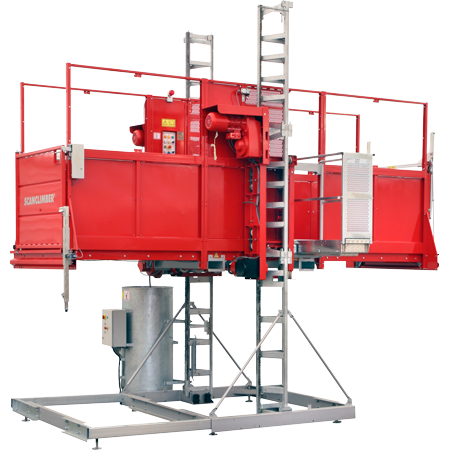

The triple hoist SC20 from Scan Climber offers first class safety, comfort and reliability to the Construction Hoist range. With the renowned Scan Climber twin mast system providing stability and comfort, load carrying capacity of 2,000kgs and operating speed of 24 metres per minute Scan Climber is one of the market leaders in the industry.

The EHPM2500/10 is a single mast transport platform with a load capacity of 1,500kg and operating speed of 12 metres per minute. With a platform size of 3080mm x 1640mm this hoist is ideal for the transport of bulk building materials.

The EHPM2500/15 is also a single mast transport platform with a load capacity of 2,000kg and a operating speed of 12 metres per minute. This model offers flexibility to change the size of platform required which is suited to locations of limited space.

Electroelsa EHPM 1000 MINI
Cargo	Material/Personnel
Load Capacity	1000KG
Lifting Height	160m
Lifting Speed	12 m/min
Power Supply	380/415 V / 50/60 Hz/ 16 A
Platform Dimension	1.38m x 1.00m / 1.58m x 1.20m / 2.08m x 1.40m

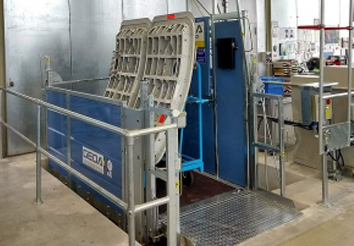

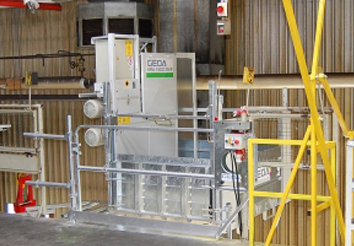

GEDA ERA 1200 Z/ZP
Cargo	Material/Personnel
Load Capacity	1500KG
Lifting Height	150m
Lifting Speed	12/24 m/min
Power Supply	1.9 kW / 400 V / 50 Hz / 16 A
Platform Dimension	2 x 3,0/6,1 kW/400 V/50 Hz/32 A

GEDA 1500 Z/ZP
Cargo	Material/Personnel
Load Capacity	2000KG
Lifting Height	100m
Lifting Speed	12 m/min / 24 m/min
Power Supply	2 x 3 kW / 6.1 kW / 400 V / 50 Hz / 32 A
Platform Dimension	1.45m x 1.65m / 1.65m x 2.9m / 3.3m x 1.45m

SCANCLIMBER MTP 2000
Cargo	Material/Personnel
Load Capacity	2000KG
Lifting Height	100m
Lifting Speed	12 m/min / 24 m/min
Power Supply	2 x (3.8/7.5) kw /400 V / 50 Hz / 63 A / 5P
Platform Dimension	1.1m x 1.5m x 3.0m

ELECTROELSA EHPM 2500/15
Cargo	Material/Personnel
Load Capacity	2000KG
Lifting Height	220m
Lifting Speed	12 m/min
Power Supply	380/415 V / 50/60 Hz / 25 A
Platform Dimension	2.28m x 1.34m / 3.00m x 1.34m / 4.00m x 1.34m

ALBA PTB 3800 – 2V
Cargo	Material/Personnel
Load Capacity	3800KG
Lifting Height	250m
Lifting Speed	12 m/min / 22 m/min
Power Supply	30 kW / 380÷460 V – 50/60Hz / 50A
Platform Dimension	2.28m x 1.34m / 3.00m x 1.34m / 4.00m x 1.34m

Construction Lifts Material/Personnel

JASO Goian ge15
Cargo	Material/Personnel
Load Capacity	1500KG
Lifting Height	200m
Lifting Speed	37 m/min
Power Supply	3 x 7.5 kW / 400V (±5% / 50 Hz / 3Ph + N + T) / 48 VAC / 75A
Platform Dimension	2.0 x 1.6 x 2.0 m

ELECTROELSA H20

h20
Cargo	Material/Personnel
Load Capacity	2000KG
Lifting Height	220m
Lifting Speed	30 m/min
Power Supply	20 kW / 380/415/440V / 50/60Hz 3Ph / 40A
Platform Dimension	3.00 m x 1.50 m
