Ladder Lifts/Solar Lifts
Ladder lifts are one of the most versatile, convenient and compact lifts available on the market today. The ladder system comes in various lengths of aluminium ladder elements that can be added or deducted to reach the desired final height. Ladder lifts have been specially designed for ease of assembly and transportation making them a very convenient option for solar panel installation, smaller scale building projects and building refurbishments. Most ladder lifts also have the ability to incline onto the roof making transportation and removal of material to the roof a much simpler task. The inclination onto the roof also makes the unloading of materials much easier and safer for the handler, eliminating as much strenuous manual handling as possible.
Ladder lifts have been designed to be highly adaptable to fit a multitude of applications which is why a large selection of load carrying devices are available. From standard cages for your typical onsite debris and materials to specialised solar panel platforms, tipping skips, sheet carriers and tile holders. For this reason the ladder lift can be a reliable on site companion and time saver to builders, solar panel installers, roofers, tilers and furniture removals.
At Casey Group we hire and sell a wide range of ladder lifts and accessories from the best manufacturers in Europe such as GEDA and CAMAC. Our range of ladder lifts offers varying load capacities and power requirements. We have a range of mains powered lifts to suit larger projects where power requirements are not an issue. We also supply the very popular and compact GEDA Battery Lift, perfect for smaller domestic jobs where installation time and on site power requirements are a cause for concern. Casey Group is sure to have a ladder lift that will suit your onsite needs. Contact us today for a quote to purchase or hire.

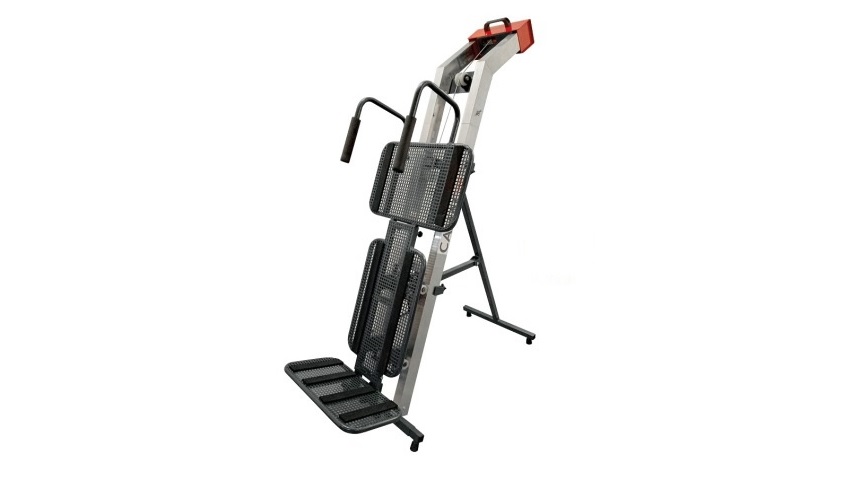

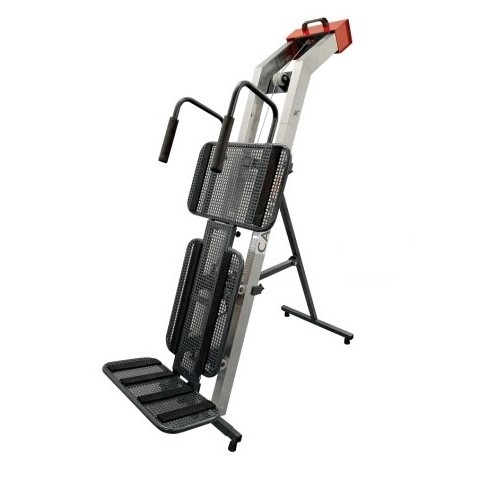

THE CAMAC MINOR LADDER HOIST DRIVER 100
The Minor Ladder Hoist driver 100 from Spanish manufacturers CAMAC is one the lightest most portable ladder hoist systems available on the market. Designed with solar panel installation in mind, the Driver 100 has a load capacity of 100kg and inclines onto the roof to allow quick, easy and safe transportation of panels. The Hoist driver 100 is the only ladder hoist that has a pin system for installation, eliminating the need for time consuming bolt tightening. The Hoist driver 100 only requires a screwdriver/drill for power so no on site power sources are necessary. The lack of a heavy motor or battery pack makes the Driver 100 hoist the most compact and easily transportable solution for solar panel installation.
Camac Minor Ladder Hoist Driver 100 Specs | |
Cargo | Material Only |
Load Capacity | 100KG |
Lifting Height | 12.5m Inclined |
Lifting Speed | 7 m/min |
Power Supply | Screw Driver – Min Rotational Speed 1400RPM |

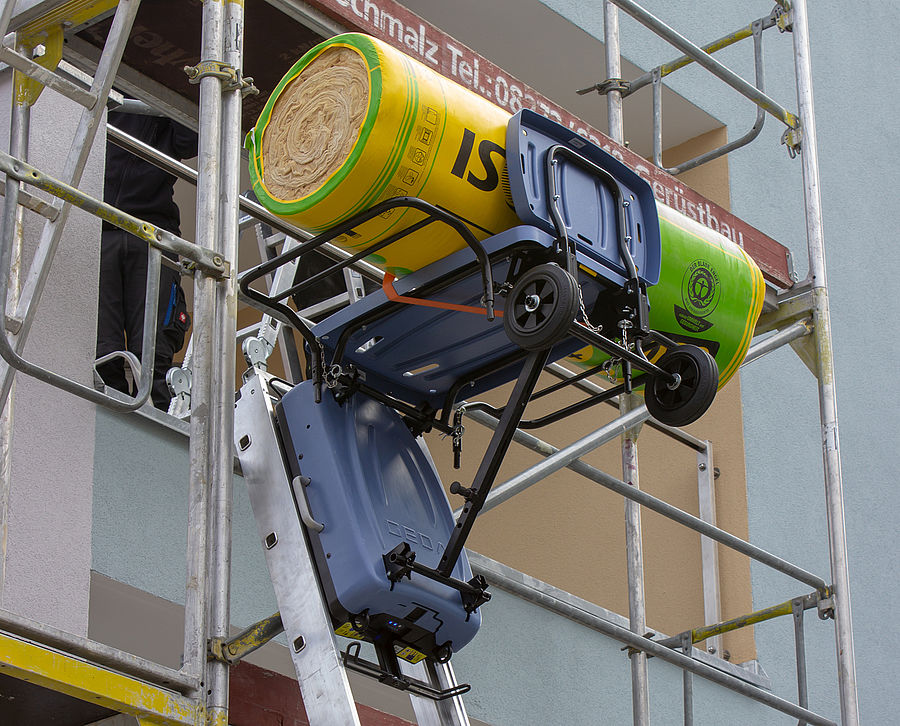

GEDA BATTERY LADDER LIFT
The GEDA Battery Ladder Lift is the new kid on the block in compact material hoists. Assembled in a flash by only one person in less than five minutes, the new lift from GEDA uses its powerful 24V/10 Ah lithium ion Battery and different load carrying devices to drive to transport all kinds of materials up to 120kg. By cleverly combining the support and/or the lean-to ladder using the convenient ladder connection kit, progressively adjustable heights from 2.1m up to 10m can be achieved. Even when the GEDA Battery Ladder Lift is not needed, the versatile robust ladder can be used as a traditional construction site ladder. After a short battery charging time of only about 1.5 hours, the compact transport professional is then ready for its next deployment. The GEDA Battery Ladder Lift is the perfect complement to the small units range and with the battery technology is introducing a new generation of height-access technology.
GEDA BATTERY LADDER LIFT SPECS | |
Cargo | Material Only |
Load Capacity | 120KG |
Lifting Height | 10m Vertical |
Lifting Speed | 15 m/min |
Power Supply | 24 V / 10 Ah Lithium Ion Battery |

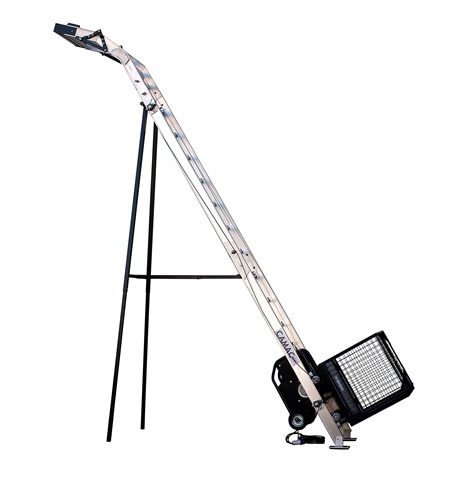

CAMAC MINOR LADDER HOIST 150
The CAMAC Minor ladder hoist 150 is an excellent solution for temporary or small scale jobs. Its wide variety of accessories facilitate the lifting of solar panels, shingles, liquids and all kind of materials. With a lightweight aluminium modular structure the CAMAC Minor ladder hoist 150 is easily transported and installed to the required height in no time at all. With a payload of 150kg, a vertical height of 30m and an inclined height of 15.5m, the CAMAC Minor Ladder Hoist is a suitable companion for most jobs.
CAMAC MINOR LADDER HOIST 150 | |
Cargo | Material Only |
Load Capacity | 150KG |
Lifting Height | 30m Vertical / 15.5m Inclined |
Lifting Speed | 20 m/min |
Power Supply | 0.85Kw / 110v / 50HZ / 15A
|
CAMAC MINOR LADDER HOIST 200
The CAMAC Minor Ladder Hoist 200 is the largest Ladder hoist in the CAMAC ladder Hoist range. With a payload of 200kg and a wider ladder system, the CAMAC Minor Hoist 200 is perfect for transporting larger loads to windows or roofs. With a vertical installation height of 40m and an inclined height of 20m the Ladder Hoist 200 goes that little bit further than any other ladder hoist on the market. A range of larger cages and load carrying devices are also available for the Minor Ladder Hoist 200 making bulkier loads easily transportable. The CAMAC Minor Ladder Hoist 200 also has the option of a carrying device specifically for solar panels making it an ideal companion for solar panel installation on larger commercial jobs.
CAMAC MINOR LADDER HOIST 200 Specs | |
Cargo | Material Only |
Load Capacity | 200KG |
Lifting Height | 40m Vertical / 20m Inclined |
Lifting Speed | 22 m/min |
Power Supply | 1.1Kw / 110v / 50HZ / 18A
|

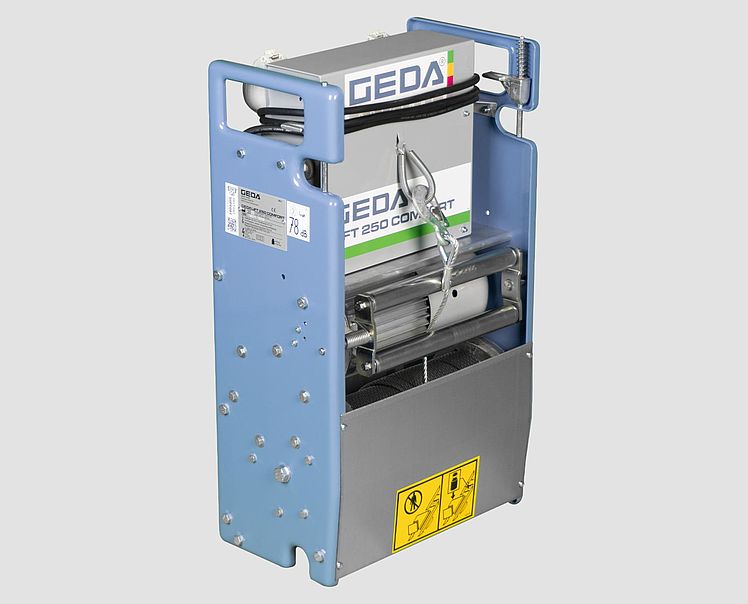

GEDA LIFT 250 COMFORT
Inclined hoists from GEDA have been produced for decades. Their reliability makes them a favourite transport device for roofers and construction workers. These vertical aluminium hoists have already proved their many ways of application for various kinds of use thousands of times. They are easy, quick and reliable transport units for interior work, refurbishment or repairs on flat roof buildings. GEDA can offer the appropriate load receptacle for any kind of building material and any kind of use. Save time and strength by using a GEDA inclined hoist.
The GEDA LIFT 250 Comfort has a payload of 250kg and an extra-strong ladder system. The construction of GEDA’s inclined hoists is so easy that even unschooled workers can perform the assembly. With the help of massive threaded bolts, the ladder elements are assembled on the ground – without any tools. For flexible working conditions, variable devices are necessary. Therefore GEDA provides inclined hoists with several devices and equipment for transporting distinct kinds of material:
GEDA LIFT 250 COMFORT Specs | |
Cargo | Material Only |
Load Capacity | 250KG |
Lifting Height | 19m |
Lifting Speed | 30 m/min |
Power Supply | 1.3 kW / 110 V / 50 Hz / 16 A |
